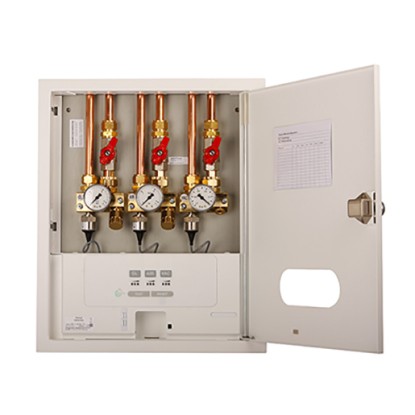

The Ventus shut-off valve system facilitates the targeted exclusion of individual wards or functional areas from the central gas supply system. The integrated electronics continuously monitor the pressure in the piping and visually and acoustically trigger the clinical emergency alarm. Additionally, the Ventus system has an intake point that is specific for the type of gas and is protected against unauthorized opening by means of an electronically monitored door with emergency access. Installation is suitable for flush mounting, assembly in dry walls or surface mounting.Door made of sheet steel, powder-coated (RAL 9016), opening > 90° via a lateral hinge.
The VENTUS evo represents the next generation of Ventus product family and not only stands for the evolution of this product line with its name but also with its features.

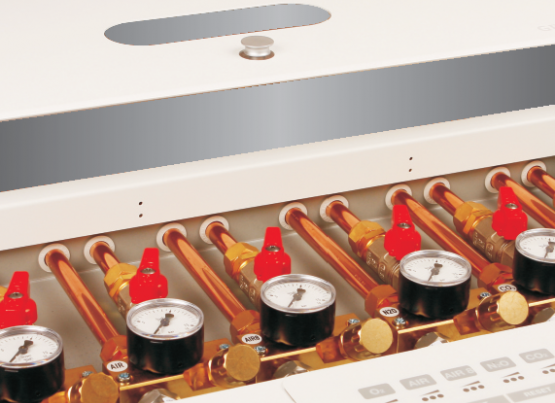

The upper panel enables quick access to the valve units of the individual supply lines.
it is made entirely of high-quality powder-coated metal, which makes it robust, durable and timelessly beautiful.
Its slim and clean design fits perfectly into any environment, without becoming invisible.
The area monitor, integrated in the lower panel, continuously monitors the pressure values of the medical gas supply network.
The clean interface of the touchscreen enables the staff to always have the current pressure values in view.
An optical and acoustic alarm shows the exact deviation from the normal state in the affected supply line.
