The Suction group of products covers the entire range of applications for medical suction units: bronchial suction, units for withdrawing blood, irrigation liquids and wound secretions during operations, as well as devices for the continuous discharge of wound secretions in vacuum dressing technique or for thoracic drains. GREGGERSEN's products are operated by vacuum or compressed air. In the emergency supply sector,they can also be operated with oxygen.

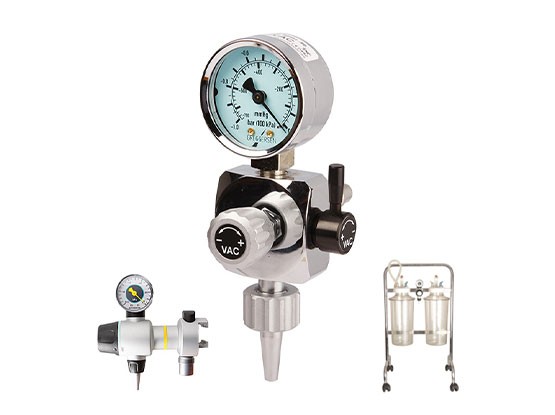

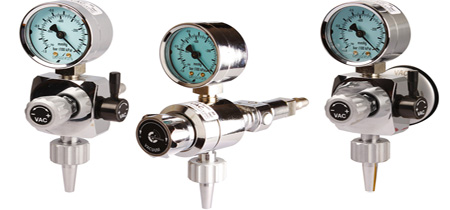

Medical vacuum regulator for suction dosing meet DIN EN ISO 10079-3 specifications.
• With vacuum gauge, fine dosing and quick-action stop valve.
• Plug-in unit for direct coupling to a DIN outlet.
• The fine dosing valve offers infinitely variable vacuum.
• The manometer’s display is visible to the user at the front.

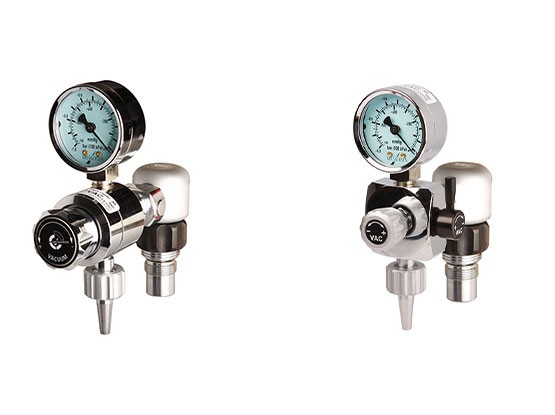

Medical vacuum regulator for suction dosing meet DIN EN ISO 10079-3 specifications.
• With vacuum gauge, fine dosing and quick-action stop valve.
• Rail-mounted unit, incl. rail clamp for attaching to a standard wall-mounted rail (25x10 mm or 30x10 mm).
• Vacuum inlet integrated into the rail clamp (NIST).
• The fine dosing valve offers infinitely variable vacuum.
• The manometer’s display is visible to the user at the front.

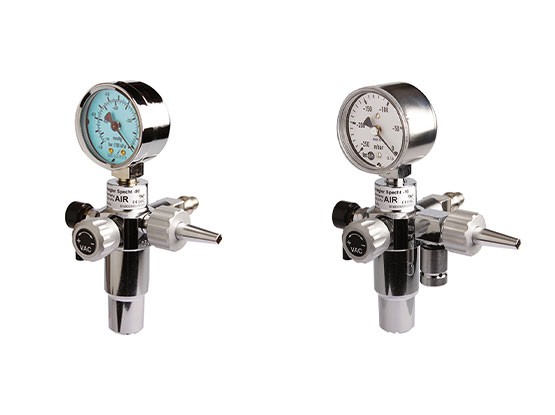

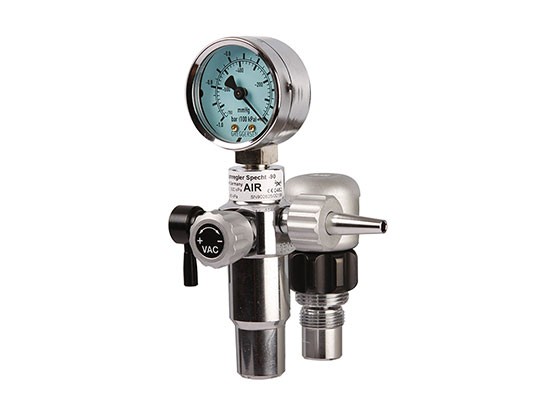

Medical vacuum regulator ejector is based on a compressed air ejector for regulation of suction; with vacuum meter, fine control valve and quick action stop valve; Plug unit for direct connection to a DIN outlet; With the fine control valve it is possible to regulate the vacuum infinitely. The optional sterile-filter works like a silencer.
Medical vacuum regulator ejector is based on a compressed air ejector for regulation of suction; with vacuum meter, fine control valve and quick action stop valve; Rail unit incl. rail clamp for attaching to a rail system for supporting medical equipment in line with DINEN 12218 (25x10mm or 30x10mm); vacuum inlet integrated into the rail clamp (NIST). With the fine control valve it is possible to regulate the vacuum infinitely.The optional sterile-filter works like a silencer. All Woodpecker regulators meet DIN EN ISO 10079-3 specifications.

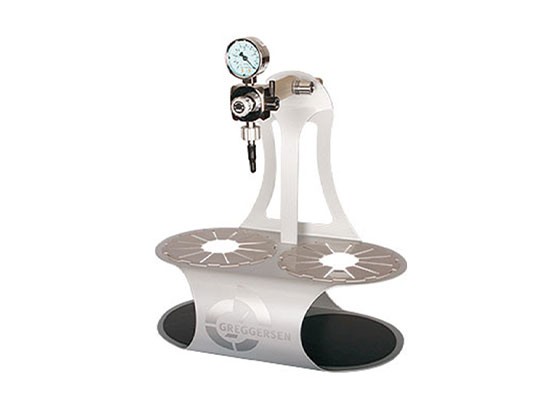

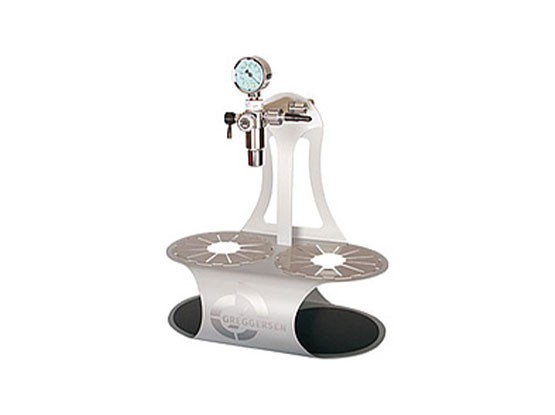

Medical, portable vacuum suction unit for 2 drainage containers.
Universal fittings for all container types. Commercially available containers between 0.5 and 3.0 litres fromvarious manufacturers can be accommodated.
The carrying frame has a stable handgrip and fitting for 25x10 mm and 30x10 mm standard wall-mountedrails. The vacuum regulator is located at the front, which affords the user rapid and direct access. The NIST gas inlet is located at the back of the unit, such that the supply hose is outside the working area.
Scope of delivery:
• Vacuum regulator with fine dosing and quick-action valve
• Vacuum gauge
• Carrying frame, coated
• 2 x highly flexible holding cuffs
Medical, portable compressed air suction unit for 2 drainage containers.
Universal fittings for all container types. Commercially available containers between 0.5 and 3.0 litres fromvarious manufacturers can be accommodated
The carrying frame has a stable handgrip and fitting for 25x10 mm and 30x10 mm standard wall-mountedrails. The vacuum regulator is located at the front, which affords the user rapid and direct access.
The NIST gas inlet is located at the back of the unit, such that the supply hose is outside the working area.
Scope of delivery:
• Compressed air ejector with fine dosing and quick-action valve
• Vacuum gauge
• Carrying frame, coated
• 2 x highly flexible holding cuffs

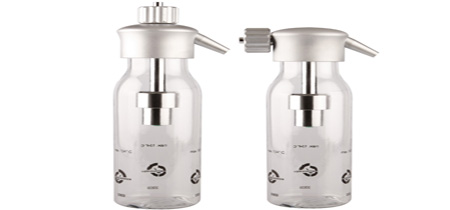

Medical, mobile surgical suction unit for vacuum or compressed air operation, including regulator for suction dosing, fine dosing and quick-action valve, mobile frame accommodates 2 x 5 litre bottles (drainage bottles with integrated overflow protection). A rail clamp is integrated into the drainage bottle’s lid,making it possible to attach it to a standard wallmounted rail. The fine dosing valve offers infinitely variable vacuum. The manometer’s display is visible to the user at the front. The complete unit is mounted on a mobile frame. The NIST vacuum or compressed air inlet is integrated into the rail clamp.

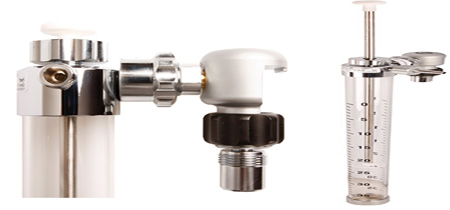

Used in continuous drainage for fine adjustment of vacuum by means of water column’s height. With an integrated control valve. Available as a plug-in unit for direct connection to a vacuum outlet or as a rail-mounted unit, NIST inlet. The vacuum is enabled via the integrated control valve and the suction needed for suction is generated. As soon as air bubbles become visible at the lower end of the immersion tube, the low pressure set via the immersion tube has been reached. If no vacuum is available, it can be generated via an ejector from compressed air.
Greggersen , and in order to offer their customers individual solutions, they have developed an adapter that allows the user to rotate the manometer and read the display from any desired position.
Customer can upgrade your existing equipment, for example:
• VAC-operated suction units
• AIR-operated suction units
• Compressed gas regulator
• Equipment with 1/4“ manometer connector
