Medical Air Plants

MIL'S adapts its products according to customer's need: emergency, neonatology, surgery, anesthesia, sterilization, resuscitation... for all models of Air plants
The medical air is produced from the ambient air, it is compressed and purified to be distributed in the centralized network which feeds the two pressure levels : a pressure level at 4 bar called “medical air” and a level of pressure at 7 bar named “instrumental air”.
MIL'S offer two technologies : oilless compressors and lubricated compressors , the plants are CE marked according to 93/42 EU directive and ISO 7396-1 norm ,HTM BS version also available.

HOSPITAIR SCROLAIR PACK D

The HOSPITAIR SCROLAIR PACK D medicinal air plants are equipped with two or three production sources. The air treatment system is assembled with two SEC 7HC adsorption air dryers mounted in duplex. The control of the system is done by electronic control board.
These systems fit to the ISO 7396-1 standard

HOSPITAIR SCROLAIR 1 and 2

HOSPITAIR SCROLAIR 1 and 2 medicinal air plants can be equipped with up to two oilless scroll compressors. The air treatment system is assembled with an adsorption air dryer SEC 7HC. The control of the system is done by electronic control board.
These systems fit to the ISO 7396-1 standard.

HOSPITAIR SCOLAIR PACK

The HOSPITAIR SCOLAIR PACK medicinal air plants are equipped with two or three production sources. The oilless spiral compression heads are fixed on a sliding support to facilitate maintenance access. The air treatment system is assembled with an adsorption air dryer SEC 7HC. The control of the system is done by electronic control board.
These systems fit to the ISO 7396-1 standard.

HOSPITAIR SCROLAIR G

HOSPITAIR SCROLAIR G medicinal air plants are equipped with dry scroll compressors. The air treatment system is assembled with an adsorption air dryer SEC 7HC. The control unit is done by electronic control board.
These systems fit to the ISO 7396-1 standard.

HOSPITAIR SKID

HOSPITAIR SKID 11 or 15 bar medicinal air plants version, are equipped with lubricated screw compressors. The air treatment system is assembled with an adsorption air dryer SEC 7HC.
These systems fit to the ISO 7396-1.

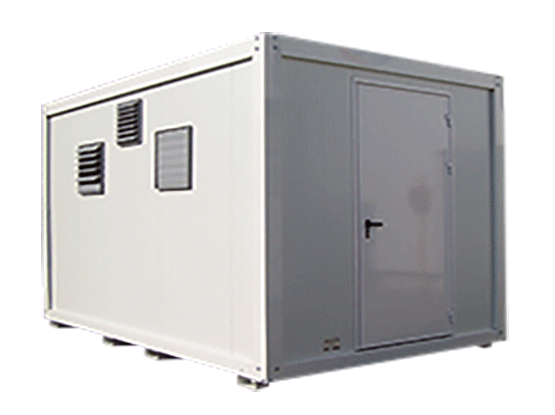

HOSPITAIR C

HOSPITAIR C medicinal air plants in the 11 or 15 bar version are equipped with lubricated screw compressors. Housed in a composite cabin, they are designed for outdoor installation. They are resistant to different climatic conditions, and are assembled with an air conditioning and heating system with energy recovery. The air treatment system is assembled with an adsorption air dryer SEC 7HC. The control unit is done by electronic control board.These systems fit to the ISO 7396-1 standard.
